Potstream Typical System Layout
-
A & B - Pressure Regulator And Nut&Tail
-
Filter
-
Elbow 13mm
-

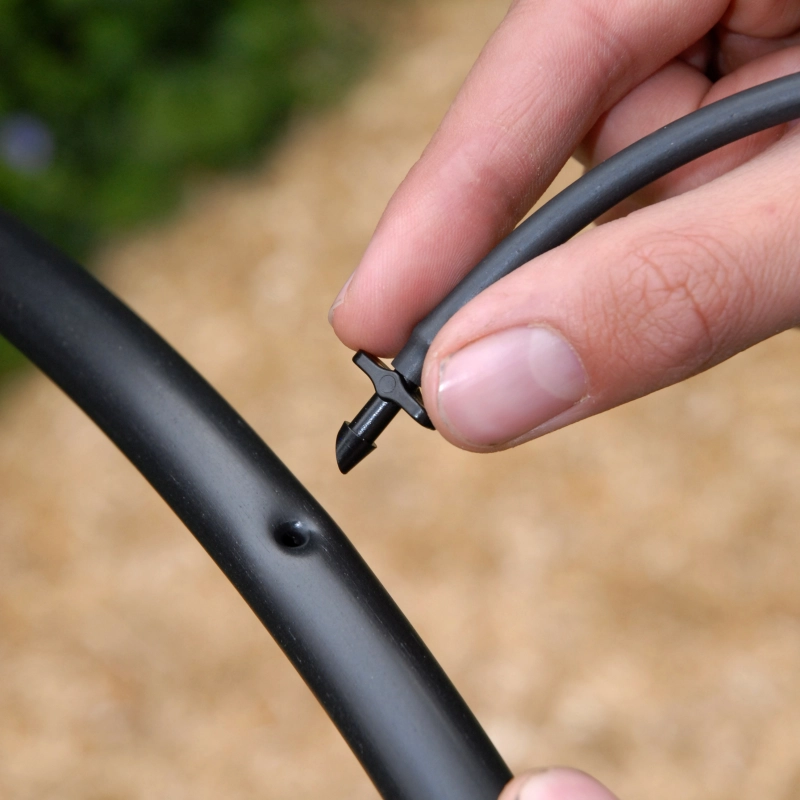

E - 4mm Take-off Joiner
-

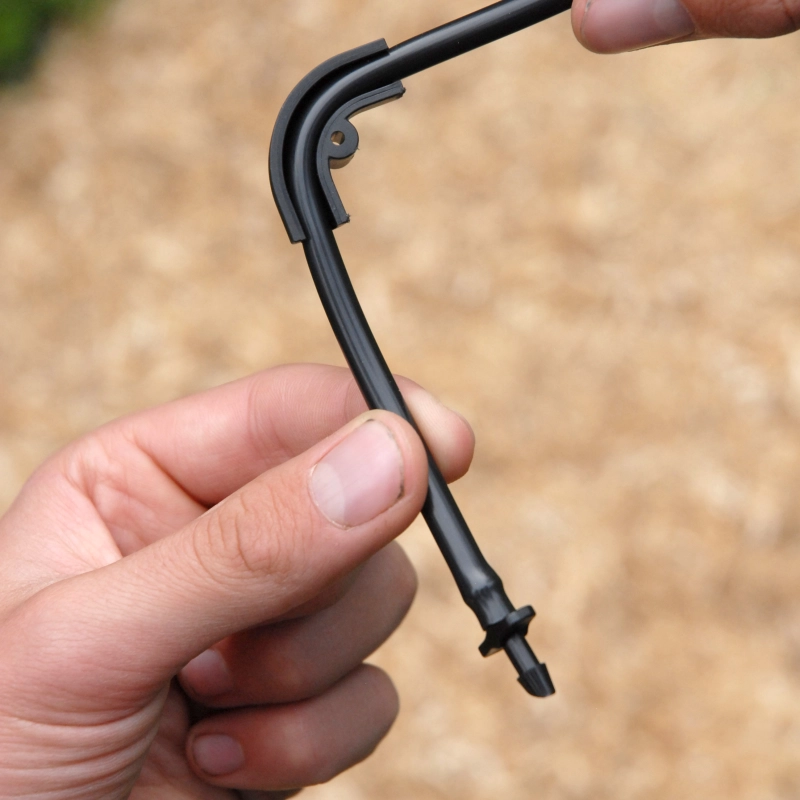

F - Tidy Bow Elbow
-
G - Potstream
-
H - 13mm Tee
-

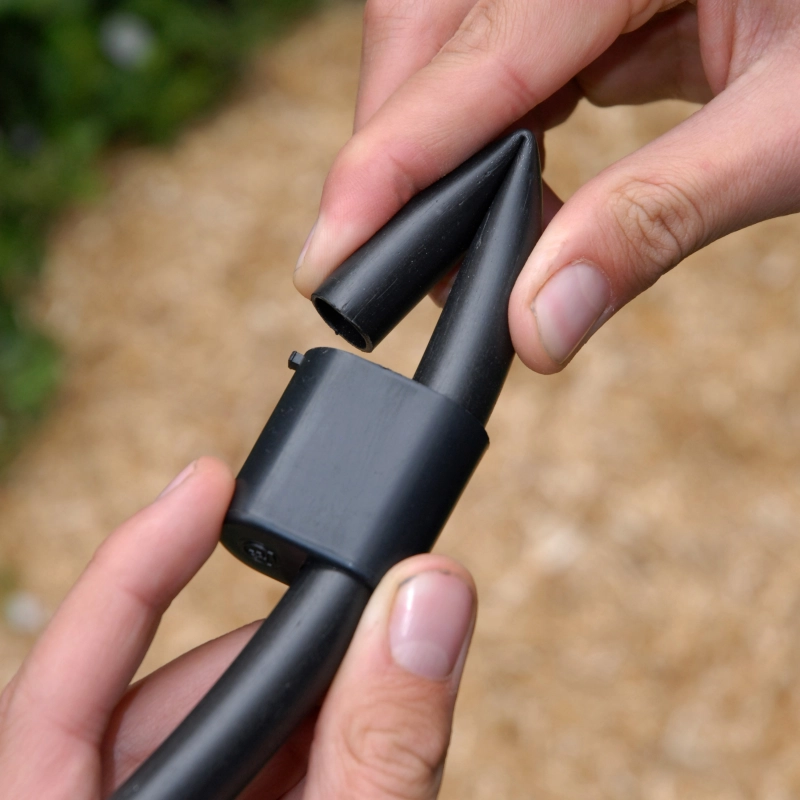

End Sleeve Assembly - open for flushing
-
J - 13mm Supply Tubing
-

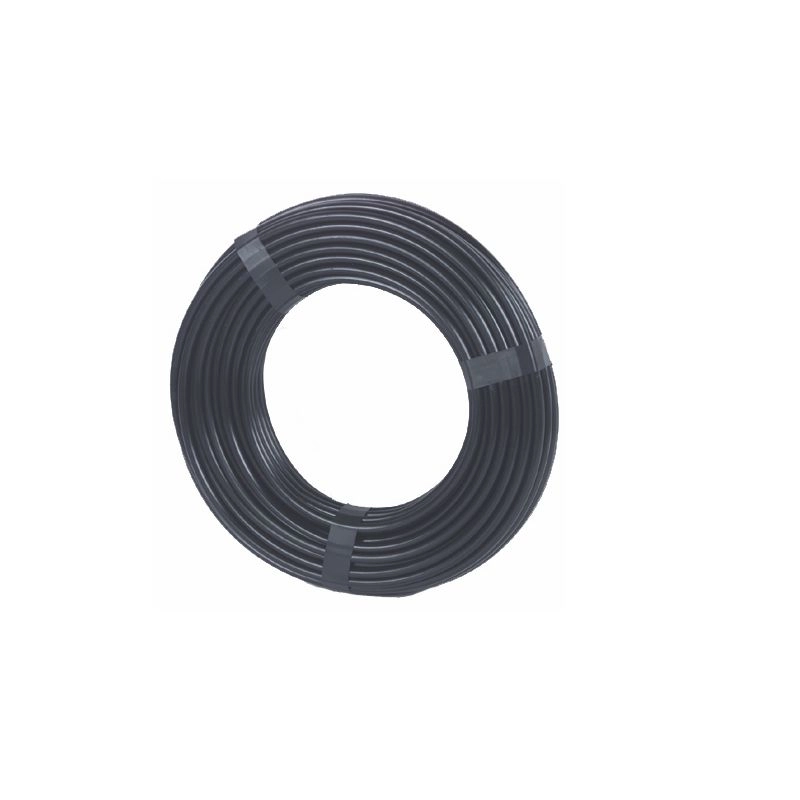

K - 4mm Micro Tubing
-
13mm Ratchet Clamps (as required)
Posted on November 01, 2017
Typical recommended layout of our Potstream System
We are often asked how our systems go together so we thought we would write this article to show how our Potstream system for potted plants goes together.
Protecting your system
Importantly your system should incorporate a pressure regulator and filter to protect the system from pressure blowouts and contaminants. These should be installed at the water source.
Supply Tubing
Run your supply tubing (13mm) from the water source around the pots you want to water. Use elbows, tees and end sleeves as required. We recommend you use Ratchet Clamps #15 on each barb connection to secure the poly joints. End sleeves are better than plugs as you can periodically flush the supply tubing.
Feeder (Micro) Tubing
Feeder tubing is used to connect the Potstream's to the supply tubing. A tube punch is used to pierce a hole in the supply tubing and a connection is made using a 4mm Easy Insert Joiner. The other end of the tube is connected to the Potstream. A Tidy Bow clip on elbow is clipped onto the feeder tubing at the base of the pot for a neat installation.
Adjusting your system
The Potstream's have an adjustment knob which can be opened or closed to control the flow to each pot.
